BCR25FM-12LB Datasheet - Renesas

BCR25FM-12LB, Triac

BCR25FM-12LB 600V - 25A - Triac Medium Power Use .

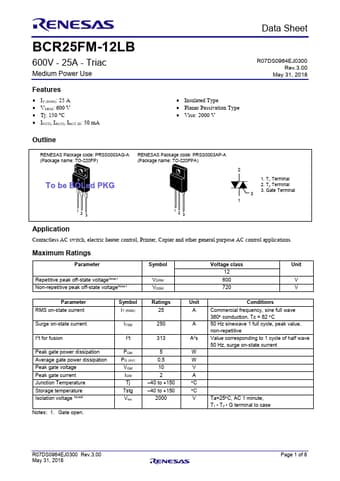

datasheet Preview Page 1 from Datasheet4u.com

BCR25FM-12LB-Renesas.pdf

BCR25FM-12LB Datasheet Preview — Preview of BCR25FM-12LB PDF

Datasheet Details

Part number:

BCR25FM-12LB

Manufacturer:

Renesas ↗

File Size:

489.04 KB

Description:

Triac

Features

* IT (RMS): 25 A
* VDRM: 600 V
* Tj: 150 °C
* IFGTI, IRGTI, IRGT III: 50 mA Data Sheet R07DS0964EJ0300 Rev.3.00 May 31, 2018
* Insulated Type
* Planar Passivation Type
* Viso: 2000 V Outline RENESAS Package code: PRSS0003AG-A RENESAS Package

Applications

* Maximum Ratings Parameter Repetitive peak off-state voltageNote1 Non-repetitive peak off-state voltageNote1 Symbol VDRM VDSM Voltage class 12 600 720 Unit V V Parameter RMS on-state current Surge on-state current I2t for fusion Peak gate power dissipation Average gate power dissipation Peak g
