BCR20C - Triac

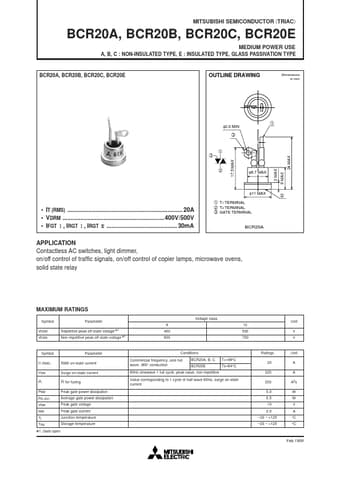

MITSUBISHI SEMICONDUCTOR 〈TRIAC〉 BCR20A, BCR20B, BCR20C, BCR20E MEDIUM POWER USE A, B, C : NON-INSULATED TYPE, E : INSULATED TYPE, GLASS PASSIVATION TYPE BCR20A, BCR20B, BCR20C, BCR20E OUTLINE DRAWING Dimensions in mm φ2.0 MIN 3 1 φ11 MAX 1 T1 TERMINAL 2 T2 TERMINAL 3 GATE TERMINAL 2 IT (RMS) 20A VDRM 400V/500V IFGT !, IRGT !, IRGT # 30mA BCR20A APPLICATION Contactless AC switches, light dimmer, on/off control of traffic signals, on/off control of copie.

BCR20C_MitsubishiElectricSemiconductor.pdf

BCR20C Datasheet Preview — Preview of BCR20C PDF

Datasheet Details

Part number:

BCR20C

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

91.39 KB

Description:

Triac.
