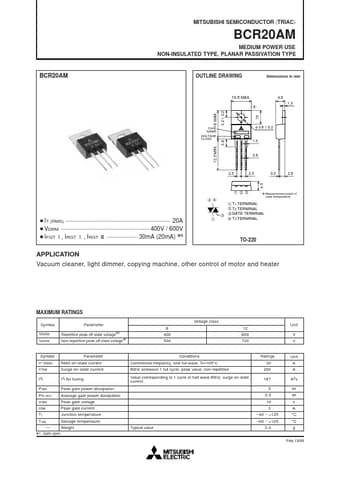

MITSUBISHI SEMICONDUCTOR 〈TRIAC 〉 BCR20AM MEDIUM POWER USE NON-INSULATED TYPE, PLANAR PASSIVATION TYPE BCR20AM OUTLINE DRAWING Dimensions in mm 10.5 MAX. 4.5 16 MAX. 3.2 ± 0.2 7.0 1.3 12.5 MIN. 3.6 TYPE NAME VOLTAGE CLASS φ 3.6 ± 0.2 1.0 0.8 E 2.5 2.5 0.5 2.6 20A q VDRM 400V / 600V q IFGT !, IRGT ! , IRGT # 30mA (20mA) V5 q IT (RMS) T1 TERMINAL T2 TERMINAL GATE TERMINAL T2 TERMINAL TO-220 APPLICATION Vacuum cleaner, light dimmer, copying machine, othe.
