FS70KM-06 Datasheet - Mitsubishi Electric Semiconductor

FS70KM-06 N-Channel Power MOSFET

MITSUBISHI Nch POWER MOSFET FS70KM-06 HIGH-SPEED SWITCHING USE FS70KM-06 OUTLINE DRAWING 10 ± 0.3 6.5 ± 0.3 3 ± 0.3 Dimensions in mm 2.8 ± 0.2 15 ± 0.3 f 3.2 ± 0.2 14 ± 0.5 3.6 ± 0.3 1.1 ± 0.2 1.1 ± 0.2 0.75 ± 0.15 E 0.75 ± 0.15 2.54 ± 0.25 2.54 ± 0.25 4.5 ± 0.2 1 2 3 2.6 ± 0.2 ¡10V DRIVE ¡VDSS 60V ¡rDS (ON) (MAX) 7.5mΩ ¡ID 70A ¡ntegrated Fast Recovery Diode (TYP.) 85ns ¡Viso 2000V w q q GATE w DRAIN e SOURCE e TO-220FN APPLICATION Motor control, Lamp control, Solenoid .

FS70KM-06_MitsubishiElectricSemiconductor.pdf

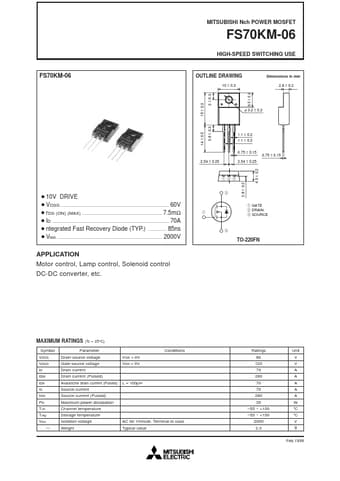

Preview of FS70KM-06 PDF
FS70KM-06 Datasheet Preview Page 2 FS70KM-06 Datasheet Preview Page 3

Datasheet Details

Part number:

FS70KM-06

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

42.75 KB

Description:

N-channel power mosfet.
