FS70KM-2 - N-Channel Power MOSFET

📥 Download Datasheet

Datasheet preview – FS70KM-2

Datasheet Details

Part number FS70KM-2
Manufacturer Mitsubishi Electric Semiconductor
File Size 41.89 KB
Description N-Channel Power MOSFET
Datasheet download datasheet FS70KM-2 Datasheet
Additional preview pages of the FS70KM-2 datasheet.

📁 Similar Datasheet

  • FS70KM-2 - N-Channel MOSFET (INCHANGE)
  • FS704B2R1CH6A2KAM - 4Gbits NAND Flash + 2Gbits LPDDR2 nMCP (Longsys)
  • FS704B2R1CH6A2KDE - 4Gbits NAND Flash + 2Gbits LPDDR2 nMCP (Longsys)
  • FS70SM-06 - N-Channel MOSFET (VBsemi)
  • FS70UM-2 - N-Channel 100V MOSFET (VBsemi)
  • FS70UM-2 - Nch Power MOS FET (Renesas)
  • FS70UMJ-06 - Nch POWER MOSFET (Mitsubishi)
  • FS70UMJ-06F - Nch Power MOS FET (Renesas)
  • FS7140 - Programmable PhaseLocked Loop Clock Generator (ON Semiconductor)
  • FS7145 - Programmable PhaseLocked Loop Clock Generator (ON Semiconductor)
Other Datasheets by Mitsubishi Electric Semiconductor

Full PDF Text Transcription

Click to expand full text

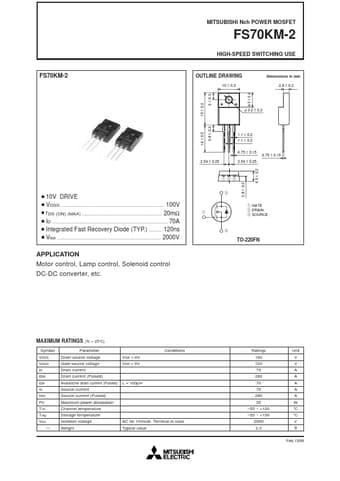

MITSUBISHI Nch POWER MOSFET FS70KM-2 HIGH-SPEED SWITCHING USE FS70KM-2 OUTLINE DRAWING 10 ± 0.3 6.5 ± 0.3 3 ± 0.3 Dimensions in mm 2.8 ± 0.2 15 ± 0.3 f 3.2 ± 0.2 14 ± 0.5 3.6 ± 0.3 1.1 ± 0.2 1.1 ± 0.2 0.75 ± 0.15 E 0.75 ± 0.15 2.54 ± 0.25 2.54 ± 0.25 4.5 ± 0.2 1 2 3 2.6 ± 0.2 ¡10V DRIVE ¡VDSS ............................................................................... 100V ¡rDS (ON) (MAX) ............................................................. 20mΩ ¡ID ........................................................................................ 70A ¡Integrated Fast Recovery Diode (TYP.) .......... 120ns ¡Viso ...............................................................................
