FS70UMJ-06 Nch POWER MOSFET

FS70UMJ-06 MITSUBISHI Nch POWER MOSFET FS70UMJ-06 HIGH-SPEED SWITCHING USE OUTLINE DRAWING 10.5MAX. r Dimensions in mm 4.5 1.3 7.0 4.5MAX. 16 3.2 ¡4V DRIVE ¡VDSS 60V ¡rDS (ON) (MAX) 7mΩ ¡ID 70A ¡Integrated Fast Recovery Diode (TYP.) 90ns APPLICATION Motor control, Lamp control, Solenoid control DC-DC converter, etc. 12.5MIN. 3.8MAX. f 3.6 1.0 0.8 D 2.54 2.54 0.5 2.6 qwe wr q GATE q w DRAIN e SOURCE r DRAIN e TO-220 MAXIMUM RATINGS (Tc = 25°C) Symbol VDSS VGSS ID IDM IDA IS ISM .

FS70UMJ-06-Mitsubishi.pdf

Preview of FS70UMJ-06 PDF

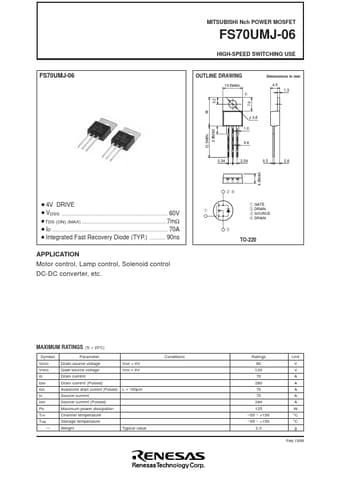

FS70UMJ-06 Datasheet Preview Page 2 FS70UMJ-06 Datasheet Preview Page 3

Datasheet Details

Part number:

FS70UMJ-06

Manufacturer:

Mitsubishi

File Size:

55.33 KB

Description:

Nch power mosfet.
