FS70UM-06 N-Channel Power MOSFET

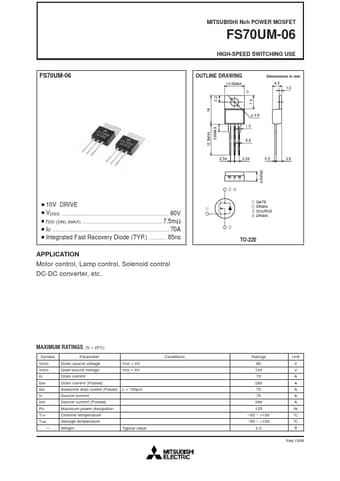

MITSUBISHI Nch POWER MOSFET FS70UM-06 HIGH-SPEED SWITCHING USE FS70UM-06 OUTLINE DRAWING 10.5MAX. r Dimensions in mm 4.5 1.3 3.2 16 12.5MIN. 3.8MAX. 1.0 7.0 f 3.6 0.8 D 0.5 2.6 2.54 2.54 q w e wr q GATE w DRAIN e SOURCE r DRAIN e ¡10V DRIVE ¡VDSS 60V ¡rDS (ON) (MAX) 7.5mΩ ¡ID 70A ¡Integrated Fast Recovery Diode (TYP.) 85ns q TO-220 APPLICATION Motor control, Lamp control, Solenoid control DC-DC converter, etc. MAXIMUM RATINGS Symbol VDSS VGSS ID IDM IDA IS ISM PD T ch T .

FS70UM-06_MitsubishiElectricSemiconductor.pdf

Preview of FS70UM-06 PDF
FS70UM-06 Datasheet Preview Page 2 FS70UM-06 Datasheet Preview Page 3

Datasheet Details

Part number:

FS70UM-06

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

40.65 KB

Description:

N-channel power mosfet.
