FS70UMJ-2 N-Channel Power MOSFET

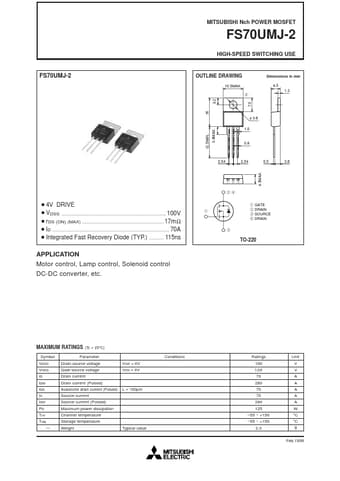

FS70UMJ-2 MITSUBISHI Nch POWER MOSFET FS70UMJ-2 HIGH-SPEED SWITCHING USE OUTLINE DRAWING 10.5MAX. r Dimensions in mm 4.5 1.3 7.0 4.5MAX. 16 3.2 ¡4V DRIVE ¡VDSS 100V ¡rDS (ON) (MAX) 17mΩ ¡ID 70A ¡Integrated Fast Recovery Diode (TYP.) 115ns APPLICATION Motor control, Lamp control, Solenoid control DC-DC converter, etc. 12.5MIN. 3.8MAX. f 3.6 1.0 0.8 D 2.54 2.54 0.5 2.6 qwe wr q GATE q w DRAIN e SOURCE r DRAIN e TO-220 MAXIMUM RATINGS (Tc = 25°C) Symbol VDSS VGSS ID IDM IDA IS IS.
