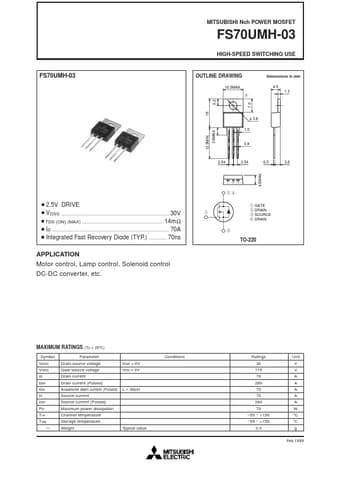

FS70UMH-03 MITSUBISHI Nch POWER MOSFET FS70UMH-03 HIGH-SPEED SWITCHING USE OUTLINE DRAWING 10.5MAX. r Dimensions in mm 4.5 1.3 7.0 4.5MAX. 16 3.2 ¡2.5V DRIVE ¡VDSS 30V ¡rDS (ON) (MAX) 14mΩ ¡ID 70A ¡Integrated Fast Recovery Diode (TYP.) 70ns APPLICATION Motor control, Lamp control, Solenoid control DC-DC converter, etc. 12.5MIN. 3.8MAX. f 3.6 1.0 0.8 D 2.54 2.54 0.5 2.6 qwe wr q GATE q w DRAIN e SOURCE r DRAIN e TO-220 MAXIMUM RATINGS (Tc = 25°C) Symbol VDSS VGSS ID IDM IDA.
