FX30KMJ-03 - HIGH-SPEED SWITCHING USE

📥 Download Datasheet

Datasheet preview – FX30KMJ-03

Datasheet Details

Part number FX30KMJ-03
Manufacturer Mitsubishi Electric Semiconductor
File Size 50.20 KB
Description HIGH-SPEED SWITCHING USE
Datasheet download datasheet FX30KMJ-03 Datasheet
Additional preview pages of the FX30KMJ-03 datasheet.

📁 Similar Datasheet

  • FX300 - Selective Call Tone Decoders (CML)
  • FX304 - C-NET AUDIO PROCESSOR (ETC)
  • FX30ASJ-03 - Pch Power MOS FET (Renesas)
  • FX30SMJ-3 - Pch Power MOS FET (Renesas)
  • FX313 - QTC Address Decoder (CML)
  • FX313K - QTC Address Decoder (CML)
  • FX315 - CTCSS Encoder (Consumer Microcircuits Limited)
  • FX316 - NMT Audio Filter Array (CML)
  • FX326 - Audio Bandpass Filter (CML)
  • FX335 - CTCSS Encoder / Decoder (CML)
Other Datasheets by Mitsubishi Electric Semiconductor

Full PDF Text Transcription

Click to expand full text

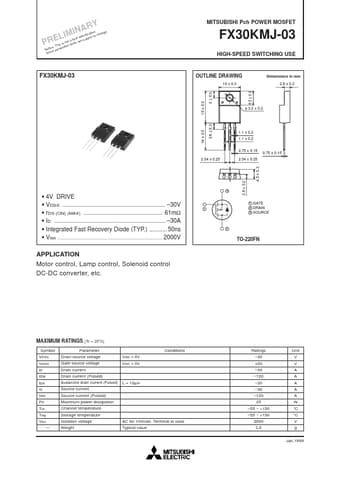

P . . nge tion ifica t to cha pec al s subjec in f are ot a is n limits his e: T ametric ic t r No e pa Som IM REL RY A N I MITSUBISHI Pch POWER MOSFET FX30KMJ-03 HIGH-SPEED SWITCHING USE FX30KMJ-03 OUTLINE DRAWING 10 ± 0.3 Dimensions in mm 2.8 ± 0.2 15 ± 0.3 φ 3.2 ± 0.2 14 ± 0.5 3.6 ± 0.3 1.1 ± 0.2 1.1 ± 0.2 0.75 ± 0.15 6.5 ± 0.3 3 ± 0.3 E 0.75 ± 0.15 2.54 ± 0.25 2.54 ± 0.25 1 2 3 3 • 4V DRIVE • VDSS ............................................................... –30V • rDS (ON) (MAX) ................................................ 61mΩ • ID .................................................................... –30A • Integrated Fast Recovery Diode (TYP.) ...........50ns • Viso ................................................................................
