FX30SMJ-3 - Pch Power MOS FET

Datasheet Summary

Features

  • Drive voltage : 4 V.
  • VDSS :.
  • 150 V.
  • rDS(ON) (max) : 100 mΩ.
  • ID :.
  • 30 A.
  • Integrated Fast Recovery Diode (TYP. ) : 100 ns Outline REJ03G1449-0200 (Previous: MEJ02G0292-0101) Rev.2.00 Aug 07, 2006.

📥 Download Datasheet

Datasheet preview – FX30SMJ-3

Datasheet Details

Part number FX30SMJ-3
Manufacturer Renesas
File Size 166.28 KB
Description Pch Power MOS FET
Datasheet download datasheet FX30SMJ-3 Datasheet
Additional preview pages of the FX30SMJ-3 datasheet.

📁 Similar Datasheet

  • FX30SMJ-3 - Pch POWER MOSFET (Mitsubishi Electric Semiconductor)
  • FX300 - Selective Call Tone Decoders (CML)
  • FX304 - C-NET AUDIO PROCESSOR (ETC)
  • FX30ASJ-03 - Pch POWER MOSFET (Mitsubishi Electric Semiconductor)
  • FX30KMJ-03 - HIGH-SPEED SWITCHING USE (Mitsubishi Electric Semiconductor)
  • FX30KMJ-06 - HIGH-SPEED SWITCHING USE (Mitsubishi Electric Semiconductor)
  • FX30KMJ-2 - HIGH-SPEED SWITCHING USE (Mitsubishi Electric Semiconductor)
  • FX30KMJ-3 - HIGH-SPEED SWITCHING USE (Mitsubishi Electric Semiconductor)
  • FX313 - QTC Address Decoder (CML)
  • FX313K - QTC Address Decoder (CML)
Other Datasheets by Renesas

Full PDF Text Transcription

Click to expand full text

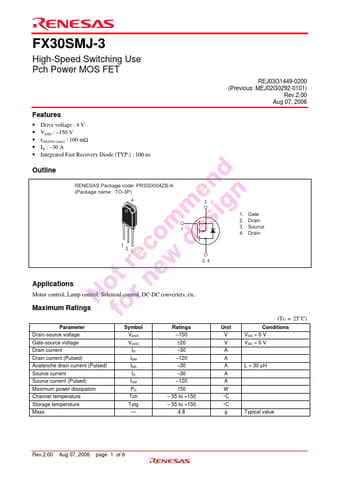

FX30SMJ-3 High-Speed Switching Use Pch Power MOS FET Features • Drive voltage : 4 V • VDSS : –150 V • rDS(ON) (max) : 100 mΩ • ID : –30 A • Integrated Fast Recovery Diode (TYP.) : 100 ns Outline REJ03G1449-0200 (Previous: MEJ02G0292-0101) Rev.2.00 Aug 07, 2006 RENESAS Package code: PRSS0004ZB-A (Package name: TO-3P) 4 3 1 23 1 2, 4 1. Gate 2. Drain 3. Source 4. Drain Applications Motor control, Lamp control, Solenoid control, DC-DC converters, etc.
