FY10AAJ-03A - N-Channel Power MOSFET

📥 Download Datasheet

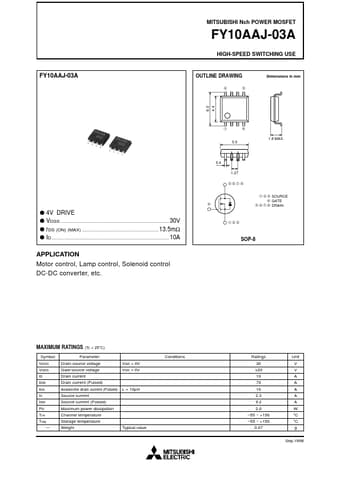

Datasheet preview – FY10AAJ-03A

Datasheet Details

Part number FY10AAJ-03A
Manufacturer Mitsubishi Electric Semiconductor
File Size 38.14 KB
Description N-Channel Power MOSFET
Datasheet download datasheet FY10AAJ-03A Datasheet
Additional preview pages of the FY10AAJ-03A datasheet.

📁 Similar Datasheet

  • FY10AAJ-03A - N-Channel Power MOSFET (Powerex Power Semiconductors)
  • FY1101F - Series Right Angle AlInGaP SMT LED (Stanley)
  • FY1105W - Dome Lens Type AllnGaP SMT LED (Stanley)
  • FY1111C - Ultra Compact AllnGaP SMT LED (Stanley)
  • FY1112C - Single Color High Brightness LED (STANLEY ELECTRIC)
  • FY1112H - Thin Type AllnGaP SMT LED (Stanley)
  • FY140 - N-Channel 100V MOSFET (VBsemi)
Other Datasheets by Mitsubishi Electric Semiconductor

    Full PDF Text Transcription

    Click to expand full text
    MITSUBISHI Nch POWER MOSFET FY10AAJ-03A HIGH-SPEED SWITCHING USE FY10AAJ-03A OUTLINE DRAWING “  Dimensions in mm 6.0 4.4 Œ 5.0  1.8 MAX. 0.4 1.27 ‘’“ Œ  Ž SOURCE  GATE  ‘ ’ “ DRAIN  q 4V DRIVE q VDSS .................................................................................. 30V q rDS (ON) (MAX) .......................................................... 13.5mΩ q ID ......................................................................................... 10A ŒŽ SOP-8 APPLICATION Motor control, Lamp control, Solenoid control DC-DC converter, etc.
