FY1101F - Series Right Angle AlInGaP SMT LED

Datasheet Summary

Features

  • Compact, super bright AlInGaP die.
  • Excellent for indicators and backlighting LCDs s.

📥 Download Datasheet

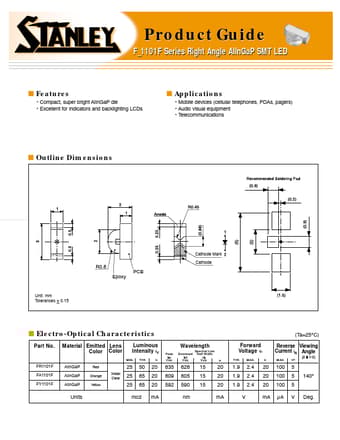

Datasheet preview – FY1101F

Datasheet Details

Part number FY1101F
Manufacturer Stanley
File Size 183.30 KB
Description Series Right Angle AlInGaP SMT LED
Datasheet download datasheet FY1101F Datasheet
