FY1112C - Single Color High Brightness LED

Datasheet Summary

Features

  • Package Product features 1112C Series Single Color High Brightness Type 1608 (h=0.5mm) Type, Milky White resin Outer Dimension 1.6 x 0.8 x 0.4mm ( L x W x H ) Temperature range Storage Temperature : -40℃～100℃ Operating Temperature : -40℃～85℃ Lead.
  • free soldering compatible RoHS compliant Dominant wavelength Half Intensity Angle Yellow Orange Red : 590nm(FY) : 605nm(FA) : 626nm(FR) FY FA,FR : θx = 132 deg. , θy = 149 deg. : θx = 130 deg. , θy = 150 deg. Die materials Rank grouping par.

📥 Download Datasheet

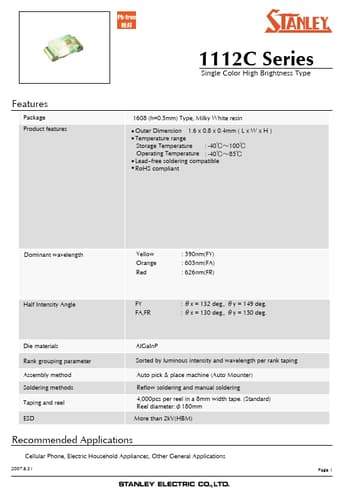

Datasheet preview – FY1112C

Datasheet Details

Part number FY1112C
Manufacturer STANLEY ELECTRIC
File Size 240.69 KB
Description Single Color High Brightness LED
Datasheet download datasheet FY1112C Datasheet
Additional preview pages of the FY1112C datasheet.

📁 Similar Datasheet

  • FY1112H - Thin Type AllnGaP SMT LED (Stanley)
  • FY1111C - Ultra Compact AllnGaP SMT LED (Stanley)
  • FY1101F - Series Right Angle AlInGaP SMT LED (Stanley)
  • FY1105W - Dome Lens Type AllnGaP SMT LED (Stanley)
  • FY10AAJ-03A - N-Channel Power MOSFET (Mitsubishi Electric Semiconductor)
  • FY10AAJ-03A - N-Channel Power MOSFET (Powerex Power Semiconductors)
  • FY140 - N-Channel 100V MOSFET (VBsemi)
Other Datasheets by STANLEY ELECTRIC

    Full PDF Text Transcription

    Click to expand full text
    Features Package Product features 1112C Series Single Color High Brightness Type 1608 (h=0.5mm) Type, Milky White resin Outer Dimension 1.6 x 0.8 x 0.4mm ( L x W x H ) Temperature range Storage Temperature : -40℃～100℃ Operating Temperature : -40℃～85℃ Lead–free soldering compatible RoHS compliant Dominant wavelength Half Intensity Angle Yellow Orange Red : 590nm(FY) : 605nm(FA) : 626nm(FR) FY FA,FR : θx = 132 deg., θy = 149 deg. : θx = 130 deg., θy = 150 deg. Die materials Rank grouping parameter Assembly method Soldering methods Taping and reel ESD AlGaInP Sorted by luminous intensity and wavelength per rank taping Auto pick & place machine (Auto Mounter) Reflow soldering and manual soldering 4,000pcs per reel in a 8mm width tape.
