FY140 - N-Channel 100V MOSFET

Datasheet Summary

Features

  • Trench Power MOSFET.
  • 175 °C Junction Temperature.
  • Low Thermal Resistance Package.
  • 100 % Rg Tested.

📥 Download Datasheet

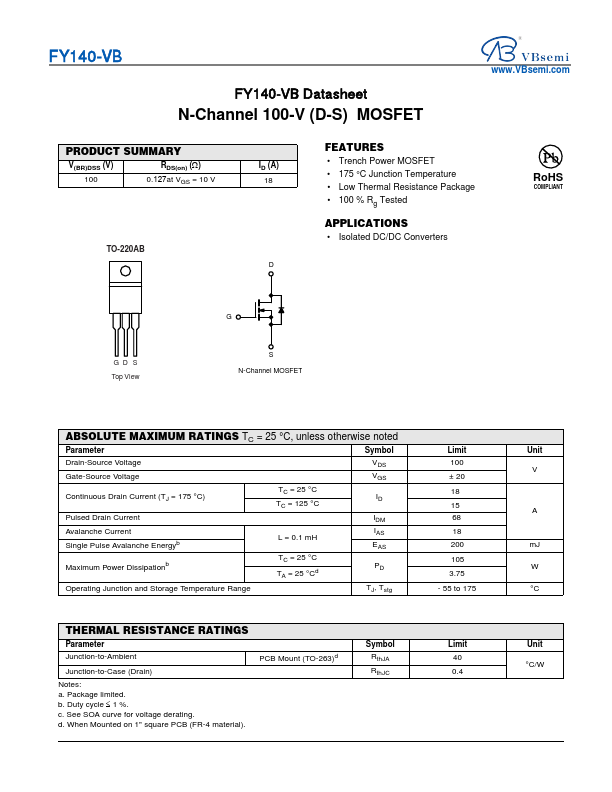

Datasheet preview – FY140

Datasheet Details

Part number FY140
Manufacturer VBsemi
File Size 208.27 KB
Description N-Channel 100V MOSFET
Datasheet download datasheet FY140 Datasheet

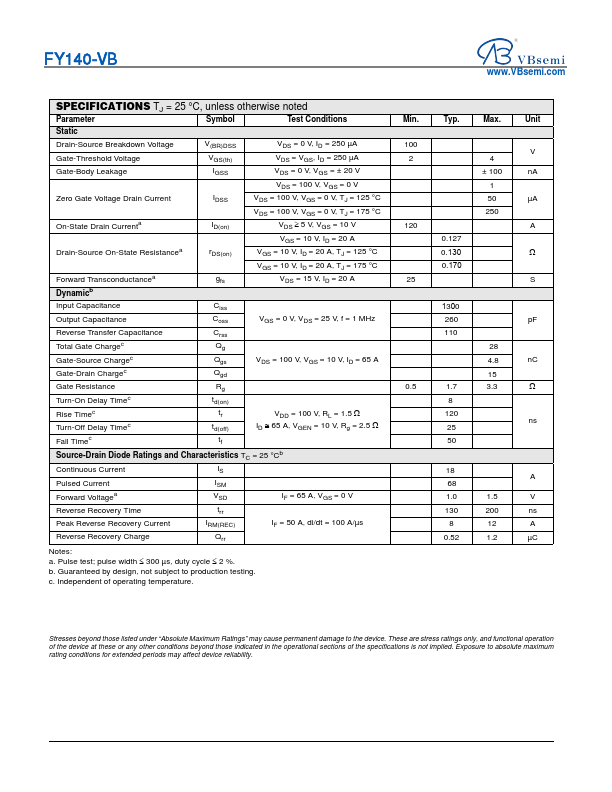

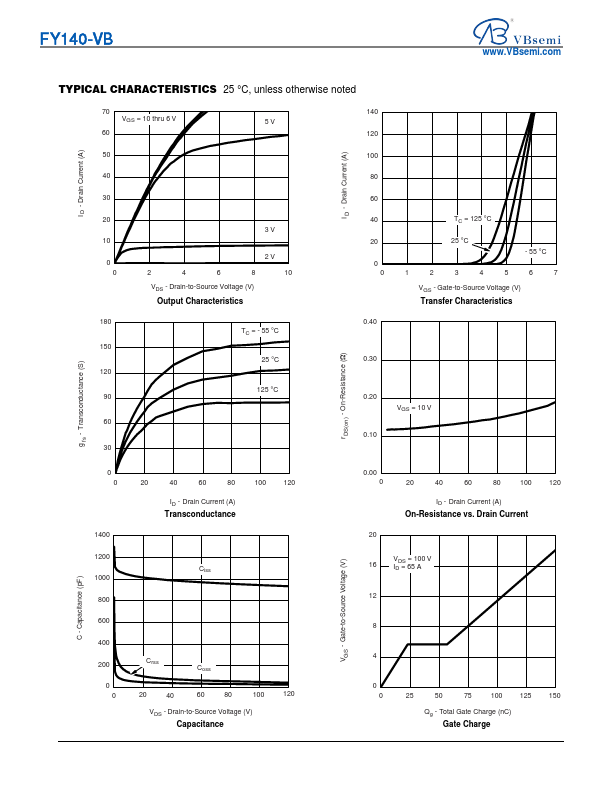

Additional preview pages of the FY140 datasheet.

📁 Similar Datasheet

  • FY10AAJ-03A - N-Channel Power MOSFET (Mitsubishi Electric Semiconductor)
  • FY10AAJ-03A - N-Channel Power MOSFET (Powerex Power Semiconductors)
  • FY1101F - Series Right Angle AlInGaP SMT LED (Stanley)
  • FY1105W - Dome Lens Type AllnGaP SMT LED (Stanley)
  • FY1111C - Ultra Compact AllnGaP SMT LED (Stanley)
  • FY1112C - Single Color High Brightness LED (STANLEY ELECTRIC)
  • FY1112H - Thin Type AllnGaP SMT LED (Stanley)
Other Datasheets by VBsemi

    Full PDF Text Transcription

    Click to expand full text
    FY140-VB FY140-VB Datasheet N-Channel 100-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY V(BR)DSS (V) RDS(on) (Ω) 100 0.127at VGS = 10 V ID (A) 18 TO-220AB D FEATURES • Trench Power MOSFET • 175 °C Junction Temperature • Low Thermal Resistance Package • 100 % Rg Tested APPLICATIONS • Isolated DC/DC Converters RoHS COMPLIANT GD S Top View G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (TJ = 175 °C) TC = 25 °C TC = 125 °C ID Pulsed Drain Current IDM Avalanche Current Single Pulse Avalanche Energyb L = 0.
