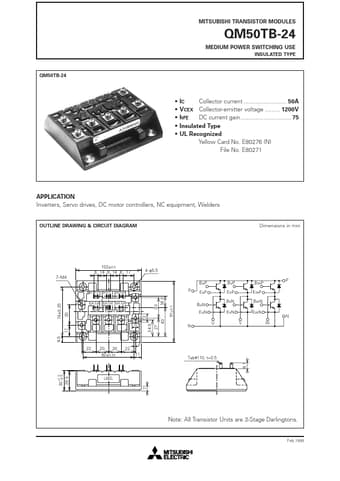

MITSUBISHI TRANSISTOR MODULES
QM50TB-24
MEDIUM POWER SWITCHING USE
INSULATED TYPE
QM50TB-24
• • • • •
IC Collector current .......................... 50A VCEX Collector-emitter voltage ......... 1200V hFE DC current gain............................... 75 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271
APPLICATION Inverters, Servo drives, DC motor controllers, NC equipment, Welders
OUTLINE DRAWING & CIRCUIT DIAGRAM
Dimensions in mm
102±0.5 6 14 6 14 6 17 7–M4
4–φ5.5 BuP BvP EvP BvN EvN U V BwP EwP BwN EwN N N W P
BuP EuP
BvP EvP
BwPEwP
P
30 16.5
P
EuP BuN EuN
74±0.25
30
24.5
8.5
17
2 22 20 20 80±0.25 22 11 Tab#110, t=0.5
8.1 30+1.5 –0.5 29.5
LABEL
7
27
N
10
43
U
V
W
N
12
Note: All Transistor Units are 3-Stage Darlingtons.
91±0.
