QM50TF-HB - Transistor

Mitsubishi Electric Semiconductor

Datasheet Details

Part number	QM50TF-HB
Manufacturer	Mitsubishi Electric Semiconductor
File Size	86.59 KB
Description	Transistor
Datasheet	QM50TF-HB Datasheet

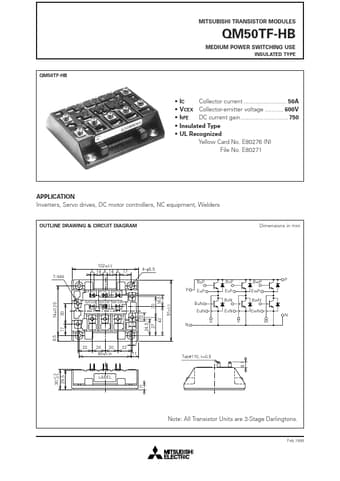

Additional preview pages of the QM50TF-HB datasheet.

📁 Similar Datasheet

QM5HG-24 - NPN Transistor (INCHANGE)

Other Datasheets by Mitsubishi Electric Semiconductor

QM50TB-24 - Transistor
QM50TB-24B - Transistor
QM50TB-2H - Transistor
QM50TB-2HB - Transistor
QM50TX-H - Transistor
QM50TX-HB - Transistor
QM500 - Transistor
QM500HA-H - Transistor

Full PDF Text Transcription

Click to expand full text

MITSUBISHI TRANSISTOR MODULES QM50TF-HB MEDIUM POWER SWITCHING USE INSULATED TYPE QM50TF-HB • • • • • IC Collector current .......................... 50A VCEX Collector-emitter voltage ........... 600V hFE DC current gain............................. 750 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION Inverters, Servo drives, DC motor controllers, NC equipment, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 102±0.5 6 14 6 14 6 17 7–M4 4–φ5.5 BuP BvP EvP BvN EvN U V BwP EwP BwN EwN N N W P BuP EuP BvP EvP BwPEwP P 30 16.5 P EuP BuN EuN 74±0.25 30 24.5 8.5 17 2 22 20 20 80±0.25 22 11 Tab#110, t=0.5 8.1 30+1.5 –0.5 29.5 LABEL 7 27 N 10 43 U V W N 12 91±0.
