QM50TB-2H Datasheet - Mitsubishi Electric Semiconductor

QM50TB-2H Transistor

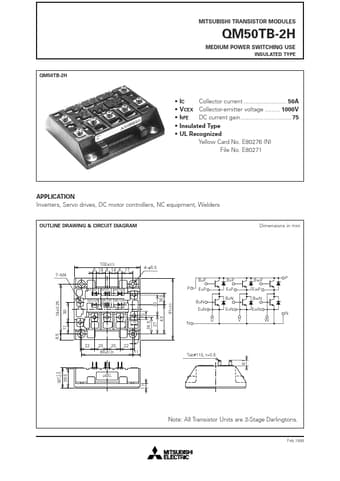

MITSUBISHI TRANSISTOR MODULES QM50TB-2H MEDIUM POWER SWITCHING USE INSULATED TYPE QM50TB-2H IC Collector current 50A VCEX Collector-emitter voltage 1000V hFE DC current gain 75 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION Inverters, Servo drives, DC motor controllers, NC equipment, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 102±0.5 6 14 6 14 6 17 7 M4 4 φ5.5 BuP BvP.

QM50TB-2H Datasheet (86.54 KB)

Preview of QM50TB-2H PDF
QM50TB-2H Datasheet Preview Page 2 QM50TB-2H Datasheet Preview Page 3

Datasheet Details

Part number:

QM50TB-2H

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

86.54 KB

Description:

Transistor.
