RM10TN-2H, FAST RECOVERY DIODE MODULE

RM10TN-2H A S D G H E R B R "Y" F P Z Q ~ ~ ~ TYP + N L - φ"X" K J T C W M U V .
Mitsubishi Three-Phase Diode Bridge Modules are designed for use in applications requiring rectification of three-phase AC lines into DC voltage.

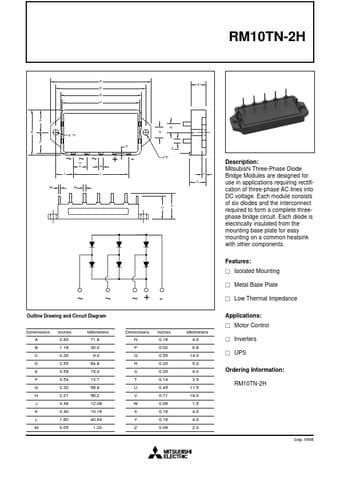

datasheet Preview Page 1 from Datasheet4u.com

RM10TN-2H_MitsubishiElectricSemiconductor.pdf

RM10TN-2H Datasheet Preview — Preview of RM10TN-2H PDF

Datasheet Details

Part number:

RM10TN-2H

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

27.27 KB

Description:

FAST RECOVERY DIODE MODULE

Features

* ٗ Isolated Mounting ٗ Metal Base Plate ~ Dimensions A B C D E F G H J K L M Inches 2.83 1.18 0.35 2.55 0.59 0.54 2.32 2.21 0.48 0.40 1.60 0.05 ~ Millimeters 71.8 30.0 9.0 64.8 15.0 13.7 58.8 56.2 12.08 10.16 40.64 1.20 ~ + Dimensions N P Q R S T U V W X Y Z Inches 0.16 0.02 0.55 0.20 0.35 0.14 0

Applications

* requiring rectification of three-phase AC lines into DC voltage. Each module consists of six diodes and the interconnect required to form a complete threephase bridge circuit. Each diode is electrically insulated from the mounting base plate for easy mounting on a common heatsink with other componen
