RM11 - SILICON RECTIFIER DIODES

RM11 Description

RM11A - RM11C PRV : 600 - 1000 Volts Io : 1.2 Amperes .

RM11 Features

* :
* High current capability High surge current capability High reliability Low reverse current Low forward voltage drop SILICON RECTIFIER DIODES D2 0.161 (4.10) 0.154 (3.90) 1.00 (25.4) MIN. 0.284 (7.20) 0.268 (6.84) MECHANICAL DATA :
* Case : D2 Molded plastic

📥 Download Datasheet

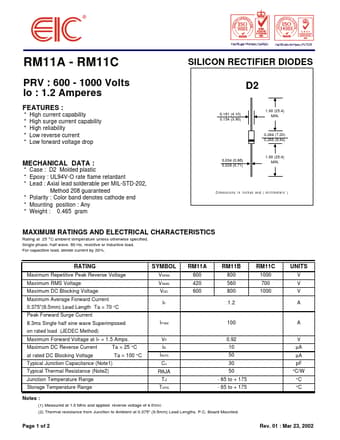

Preview of RM11 PDF
datasheet Preview Page 2

Datasheet Details

Part number
RM11
Manufacturer
EIC discrete Semiconductors
File Size
39.50 KB
Datasheet
RM11_EICdiscreteSemiconductors.pdf
Description
SILICON RECTIFIER DIODES
