RM11A Datasheet (Sanken electric)

RM11A, Rectifier Diodes

SANKEN ELECTRIC CO., LTD.

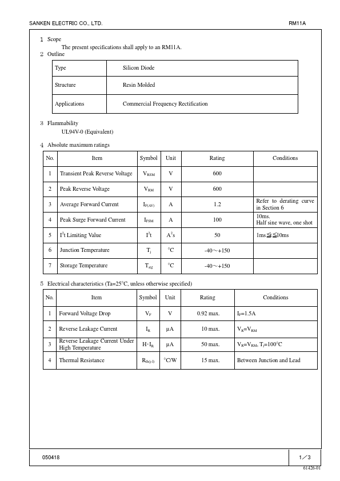

１ Scope The present specifications shall apply to an RM11A.

２ Outline Type Silicon Diode Structure Resin Molded RM11A Applications Commercial Frequency Rectification ３ Flammability UL94V-0 (Equivalent) ４ Absolute maximum ratings No.

Item Symbol Unit Rating Conditions 1 Transient Peak Reverse Voltage VRSM V 2 Peak Reverse Voltage VRM V 3 Average Forward Current IF(AV) A 4 Peak Surge Forward Current 5 I2t Limiting Value IFSM A I2t A2s 6 Junction Tempe
