RM11C Datasheet (Sanken electric)

RM11C, Rectifier Diodes

SANKEN ELECTRIC CO., LTD.

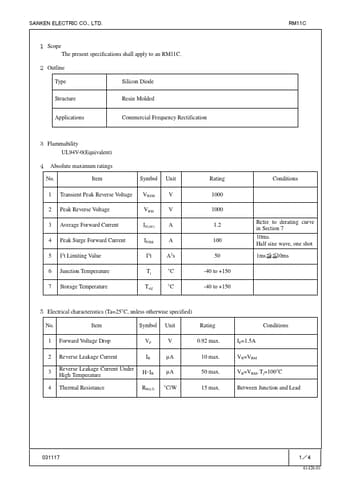

１ Scope The present specifications shall apply to an RM11C.

２ Outline Type Silicon Diode Structure Resin Molded Applications Commercial Frequency Rectification RM11C ３ Flammability UL94V-0(Equivalent) ４ Absolute maximum ratings No.

Item Symbol Unit 1 Transient Peak Reverse Voltage VRSM 2 Peak Reverse Voltage VRM 3 Average Forward Current IF(AV) 4 Peak Surge Forward Current 5 I2t Limiting Value IFSM I2t V V A A A2s 6 Junction Temperature Tj °C 7 Storag
