RM1800HE-34S Datasheet - Mitsubishi Electric Semiconductor

RM1800HE-34S_MitsubishiElectricSemiconductor.pdf

RM1800HE-34S Datasheet Preview — Preview of RM1800HE-34S PDF

Datasheet Details

Part number:

RM1800HE-34S

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

121.47 KB

Description:

High power switching use.

RM1800HE-34S, HIGH POWER SWITCHING USE

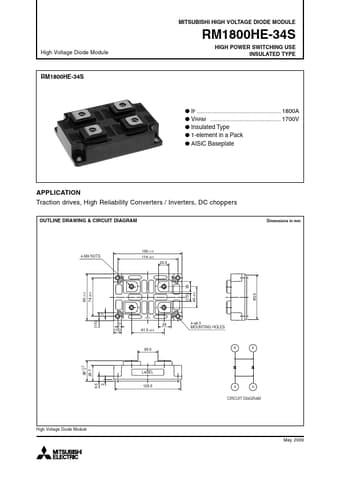

MITSUBISHI HIGH VOLTAGE DIODE MODULE RM1800HE-34S High Voltage Diode Module HIGH POWER SWITCHING USE INSULATED TYPE RM1800HE-34S IF 1800A VRRM 1700V Insulated Type 1-element in a Pack AISiC Baseplate APPLICATION Traction drives, High Reliability Converters / Inverters, DC choppers OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm www.DataSheet.net/ 4-M8 NUTS 130 ±1.0 114 ±0.3 20.5 K K 90 ±1.0 74 ±0.3 20 40 ±0.5 A A 7 >PPS< (15) 7 (15) 61.5 ±0.5
