CM900HB-90H IGBT Module

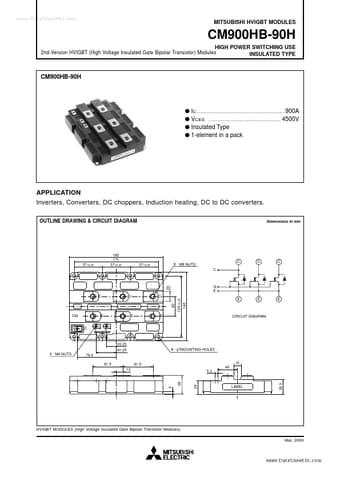

www.DataSheet4U.com MITSUBISHI HVIGBT MODULES CM900HB-90H HIGH POWER SWITCHING USE 2nd-Version HVIGBT (High Voltage Insulated Gate Bipolar Transistor) Modules INSULATED TYPE CM900HB-90H q IC 900A q VCES 4500V q Insulated Type q 1-element in a pack APPLICATION Inverters, Converters, DC choppers, Induction heating, DC to DC converters. OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 57 ±0.25 190 171 57 ±0.25 57 ±0.25 6 - M8 NUTS C C C C G E C C C 20 CM C E E E 124 ±0.25 .
