M63836KP, M63836FP - (M63836xP) 8-UNIT 500mA DARLINGTON TRANSISTOR-ARRAY

Mitsubishi Electric

The M63836KP by Mitsubishi Electric is a (M63836xP) 8-UNIT 500mA DARLINGTON TRANSISTOR-ARRAY. Below is the official datasheet preview.

Datasheet Details

Part number	M63836KP, M63836FP
Manufacturer	Mitsubishi Electric
File Size	97.88 KB
Description	(M63836xP) 8-UNIT 500mA DARLINGTON TRANSISTOR-ARRAY
Datasheet	M63836FP_MitsubishiElectric.pdf
Note	This datasheet PDF includes multiple part numbers: M63836KP, M63836FP. Please refer to the document for exact specifications by model.

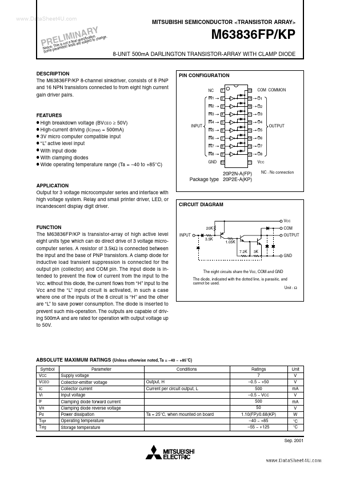

Additional preview pages of the M63836KP datasheet.

The M63836FP/KP 8-channel sinkdriver, consists of 8 PNP and 16 NPN transistors connected to from eight high current gain driver pairs.

G High breakdown voltage (BV CEO ≥ 50V) G High-current driving (IC(max) = 500mA) G 3V micro computer compatible input G “L” active level input G With input diode G With clamping diodes G Wide operating temperature range (Ta =.
40 to +85° C) IN3 IN4 INPUT IN5 IN6 IN7 IN8 GND 20P2N-A(FP) Package type 20P2E-A(KP).
