M30612M8A-402FP, M30 Datasheet - Mitsubishi

M30612M8A-402FP, M30, SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER

Mitsubishi microcomputers .
M16C / 61 Group SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER Description The M16C/61 group of single-chip microcomputers are built using the high-performan.

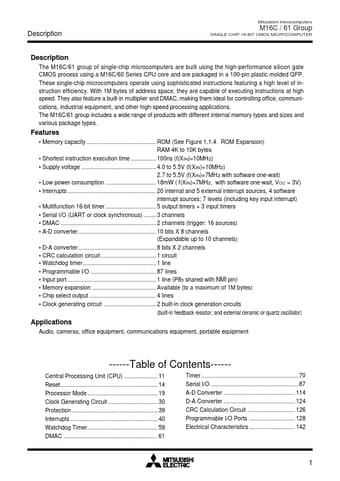

datasheet Preview Page 1 from Datasheet4u.com

M30-610.pdf

M30612M8A-402FP Datasheet Preview — This datasheet PDF includes multiple part numbers: M30612M8A-402FP, M30. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

M30612M8A-402FP, M30

Manufacturer:

Mitsubishi

File Size:

2.61 MB

Description:

SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER

Note:

This datasheet PDF includes multiple part numbers: M30612M8A-402FP, M30.
Please refer to the document for exact specifications by model.

Features

* Memory capacity ROM (See Figure 1.1.4. ROM Expansion) RAM 4K to 10K bytes
* Shortest instruction execution time 100ns (f(XIN)=10MHZ)
* Supply voltage 4.0 to 5.5V (f(XIN)=10MHZ) 2.7 to 5.5V (f(XIN)=7MHZ with software one-wait)
* Low power consumption 18mW ( f(XIN
