M30620ECFP Datasheet PDF - Mitsubishi SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER Specs

M30620ECFP - SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER

This page provides the datasheet information for the M30620ECFP, a member of the M30 SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER family.

Datasheet Summary

Description

The M16C/62 group of single-chip microcomputers are built using the high-performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 100-pin plastic molded QFP.

Features

Memory capacity ROM (See Figure 1.1.4. ROM Expansion) RAM 3K to 20K bytes.
Shortest instruction execution time 62.5ns (f(XIN)=16MHZ, VCC=5V) 100ns (f(XIN)=10MHZ, VCC=3V, with software one-wait) : Mask ROM, flash memory 5V version 142.9ns (f(XIN)=7MHZ, VCC=3V, with software one-wait) : One-time PROM version.
Supply voltage 4.2 to 5.5V (f(XIN)=16MHZ, without software wait) : Mask ROM, flash memory 5V version 4.5 to 5.5V (f(XIN)=16MHZ, without software wait) : One-tim.

Datasheet Details

Part number	M30620ECFP
Manufacturer	Mitsubishi
File Size	3.48 MB
Description	SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER
Datasheet	M30620ECFP Datasheet
Additional preview pages of the M30620ECFP datasheet.

📁 Similar Datasheet

M30620FCAFP - 16-BIT SINGLE-CHIP MICROCOMPUTER (Renesas Technology)

M30620FCAGP - 16-BIT SINGLE-CHIP MICROCOMPUTER (Renesas Technology)

M30620FCMFP - 16-BIT SINGLE-CHIP MICROCOMPUTER (Renesas Technology)

M30620FCMGP - 16-BIT SINGLE-CHIP MICROCOMPUTER (Renesas Technology)

M30620FCPFP - SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER (Renesas Technology)

M30620FCPGP - Single-Chip 16 Bit CMOS Microcomputer (Renesas)

M30620FCPGP - SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER (Renesas Technology)

M30620M8A-XXXFP - 16-BIT SINGLE-CHIP MICROCOMPUTER (Renesas Technology)

M30620M8A-XXXGP - 16-BIT SINGLE-CHIP MICROCOMPUTER (Renesas Technology)

M30620MAA-XXXFP - 16-BIT SINGLE-CHIP MICROCOMPUTER (Renesas Technology)

Full PDF Text Transcription

Click to expand full text

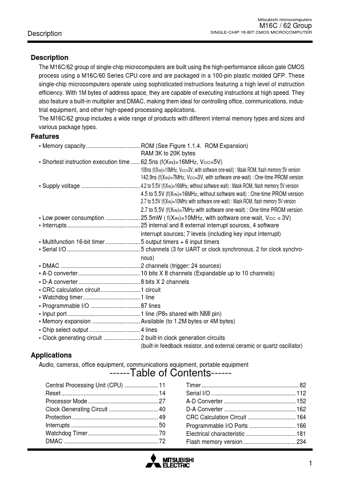

Mitsubishi microcomputers M16C / 62 Group Description SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER Description The M16C/62 group of single-chip microcomputers are built using the high-performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 100-pin plastic molded QFP. These single-chip microcomputers operate using sophisticated instructions featuring a high level of instruction efficiency. With 1M bytes of address space, they are capable of executing instructions at high speed. They also feature a built-in multiplier and DMAC, making them ideal for controlling office, communications, industrial equipment, and other high-speed processing applications.
