M30620ECFS Datasheet - Mitsubishi

SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER

M30620ECFS Features

* Memory capacity ROM (See Figure 1.1.4. ROM Expansion) RAM 3K to 20K bytes

* Shortest instruction execution time 62.5ns (f(XIN)=16MHZ, VCC=5V) 100ns (f(XIN)=10MHZ, VCC=3V, with software one-wait) : Mask ROM, flash memory 5V version 142.9ns (f(XIN)=7MHZ, VCC=3V, with software one-w

M30620ECFS General Description

SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER Description The M16C/62 group of single-chip microcomputers are built using the high-performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 100-pin plastic molded QFP. These single-chip microcomputers operate using sophisti.

M30620ECFS Datasheet (3.48 MB)

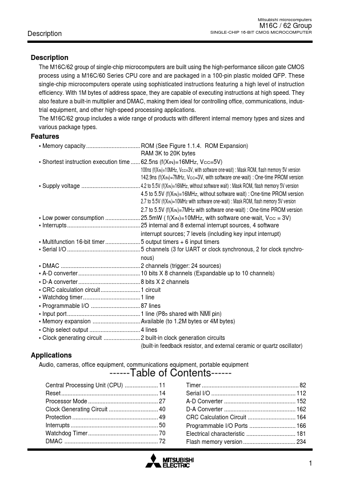

Preview of M30620ECFS PDF

Datasheet Details

Part number:

M30620ECFS

Manufacturer:

Mitsubishi

File Size:

3.48 MB

Description:

Single-chip 16-bit cmos microcomputer.
