M37201E6-XXXSP - SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER

Product Overview

Mitsubishi

📥 Download Datasheet

M37201E6-XXXSP SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER by Mitsubishi - Datasheet Preview — Datasheet preview – M37201E6-XXXSP

Datasheet Details

Part number	M37201E6-XXXSP
Manufacturer	Mitsubishi
File Size	707.74 KB
Description	SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER
Datasheet	M37201E6-XXXSP Datasheet
Note	This datasheet PDF includes multiple part numbers: M37201E6-XXXSP, M37102E8-XXXSP. Please refer to the document for exact specifications by model.

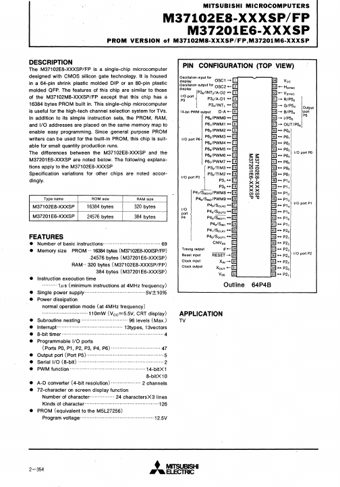

Additional preview pages of the M37201E6-XXXSP datasheet.

Product details

Description

The M37102E8-XXXSP/FP is a single-chip microcomputer designed with CMOS silicon gate technology.

Features

of this chip are similar to those of the M37102M8-XXXSP/FP except that this chip has a 16384 bytes PROM built in. This single-chip microcomputer is useful for the high-tech channel selection system for TVs. In addition to its simple instruction sets, the PROM, RAM, and 1/0 addresses are placed on the same memory map to enable easy programming. Since general purpose PROM writers can be used for the built-in PROM, this chip is suitable for small quantity production runs. The differences between th.
