M37207EFSP, M37207MF-XXXSP SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER

M37207EFSP Description

MITSUBISHI MICROCOMPUTERS M37207MF-XXXSP/FP, M37207M8-XXXSP M37207EFSP/FP SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER for VOLTAGE SYNTHESIZER and ON-SCREEN D.
The M37207MF-XXXSP/FP and M37207M8-XXXSP are single-chip microcomputers designed with CMOS silicon gate technology.

M37207EFSP Features

* of the M37207EFSP/FP are similar to those of the M37207MFXXXSP/FP except that these chips have a built-in PROM which can be written electrically. The difference between M37207MF-XXXSP/ FP and M37207M8-XXXSP are the ROM size, RAM size, ROM size for display and kinds of character. Accordingly, the fol

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: M37207EFSP, M37207MF-XXXSP. Please refer to the document for exact specifications by model.

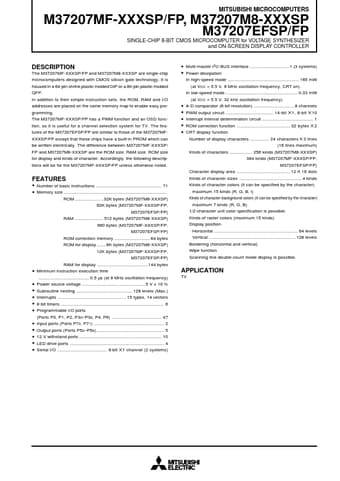

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
M37207EFSP, M37207MF-XXXSP
Manufacturer
Mitsubishi
File Size
1.84 MB
Datasheet
M37207MF-XXXSP-Mitsubishi.pdf
Description
SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER
Note
This datasheet PDF includes multiple part numbers: M37207EFSP, M37207MF-XXXSP.
Please refer to the document for exact specifications by model.
