M37408M2-XXXFP - SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER

This page provides the datasheet information for the M37408M2-XXXFP, a member of the M37408M2-XXXSP SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER family.

Datasheet Summary

Description

The M37408M2-XXXSP is a single-chip microcomputer designed with CMOS silicon gate technology.

It is housed in a ~2-pin shrink plastic molded DIP.

This single-chip microcomputer can be used as a slave-microcomputer for communication applications.

Features

Number of basic instructions.
69.
Memory size ROM 4096 bytes RAM.
.
.
.
.
128 bytes.
Instruction execution time O. 81ls (minimum instructions at 1OM Hz frequency).
Single power supply f(X1N )=10MHz.

Datasheet Details

Part number	M37408M2-XXXFP
Manufacturer	Mitsubishi
File Size	1.47 MB
Description	SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER
Datasheet	M37408M2-XXXFP Datasheet
Additional preview pages of the M37408M2-XXXFP datasheet.

📁 Similar Datasheet

M3740B - 4 SIREN (ETC)

M374S1723FTS-C7A - SDRAM Unbuffered Module (Samsung)

M374S1723FTU-C7A - SDRAM Unbuffered Module (Samsung)

M374S3323ETS-C7A - (M3xxSxxxxETx-C7A) SDRAM Unbuffered Module (Samsung semiconductor)

M374S3323ETU-C7A - (M3xxSxxxxETx-C7A) SDRAM Unbuffered Module (Samsung semiconductor)

M374S3323FTS-C7A - SDRAM Unbuffered Module (Samsung)

M374S3323FTU-C7A - SDRAM Unbuffered Module (Samsung)

M3710A - ON/OFF SIREN (ETC)

M37150EFFP - (M37150xx) SNGLE-CHIP 8-BIT CMOS MICROCOMPUTER (Renesas Technology)

M37150M6 - (M37150xx) SNGLE-CHIP 8-BIT CMOS MICROCOMPUTER (Renesas Technology)

Full PDF Text Transcription

Click to expand full text

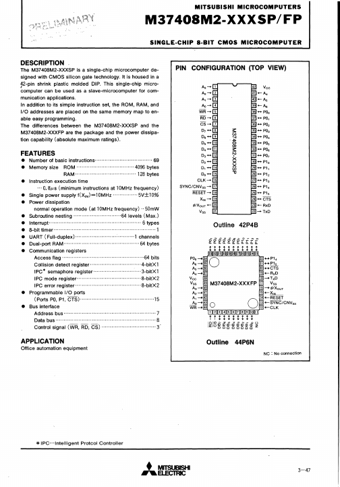

MITSUBISHI MICROCOMPUTERS M37408M2-XXXSP/FP SINGLE-CHIP I-BIT CMOS MICROCOMPUTER DESCRIPTION , The M37408M2-XXXSP is a single-chip microcomputer designed with CMOS silicon gate technology. It is housed in a ~2-pin shrink plastic molded DIP. This single-chip microcomputer can be used as a slave-microcomputer for communication applications. In addition to its simple instruction set, the ROM, RAM, and I/O addresses are placed on the same memory map to enable easy programming, The differences between the M37408M2-XXXSP and the M37408M2-XXXFP are the package and the power dissipation capability (absolute maximum ratings). FEATURES • Number of basic instructions.. ···· ............................. 69 • Memory size ROM ................................... 4096 bytes RAM······· ..
