M37409PSS Datasheet - Mitsubishi

PIGGYBACK

M37409PSS Features

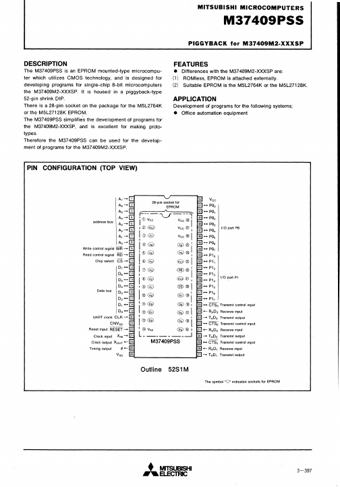

* Differences with the M37409M2-XXXSP are: (1) ROMless, EPROM is attached externally. (2) Suitable EPROM is the M5L2764K or the M5L27128K. APPLICATION Development of programs for the following systems;

* Office automation equipment PIN CONFIGURATION (TOP VIEW) address bus 28~pm so

M37409PSS General Description

The M37409PSS is an EPROM mounted-type microcomputer which utilizes CMOS technology, and is designed for developing programs for single-chip 8-bit microcomputers the M37409M2-XXXSP. It IS housed in a piggyback-type 52-pin shrink DIP. There is a 28-pin socket on the package for the M5L2764K or the M5.

M37409PSS Datasheet (284.20 KB)

M37409PSS Datasheet Preview — Preview of M37409PSS PDF

Datasheet Details

Part number:

M37409PSS

Manufacturer:

Mitsubishi

File Size:

284.20 KB

Description:

Piggyback.
