M38867E8AHP, M38867M8A-XXXHP Datasheet - Mitsubishi

M38867E8AHP, M38867M8A-XXXHP, 8-BIT CMOS MICROCOMPUTER

MITSUBISHI MICROCOMPUTERS 3886 Group SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER .
The 3886 group is the 8-bit microcomputer based on the 740 family core technology.

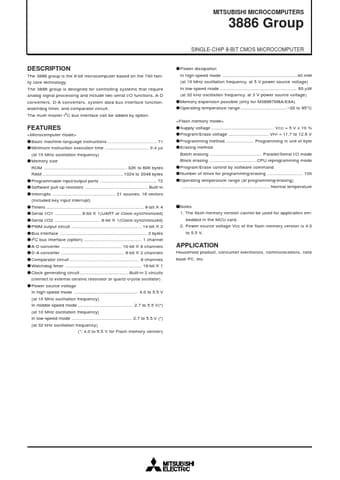

datasheet Preview Page 1 from Datasheet4u.com

M38867M8A-XXXHP-Mitsubishi.pdf

M38867E8AHP Datasheet Preview — This datasheet PDF includes multiple part numbers: M38867E8AHP, M38867M8A-XXXHP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

M38867E8AHP, M38867M8A-XXXHP

Manufacturer:

Mitsubishi

File Size:

1.51 MB

Description:

8-BIT CMOS MICROCOMPUTER

Note:

This datasheet PDF includes multiple part numbers: M38867E8AHP, M38867M8A-XXXHP.
Please refer to the document for exact specifications by model.

Features

* qBasic machine-language instructions 71 qMinimum instruction execution time 0.4 µs (at 10 MHz oscillation frequency) qMemory size ROM 32K to 60K bytes RAM 1024 to 2048 bytes qProgrammable input/output ports 72 qSoftware pull-up resistors Built-in qInterrupts 21 sources, 1
