M38867M8A-XXXHP - 8-BIT CMOS MICROCOMPUTER

Mitsubishi

📥 Download Datasheet

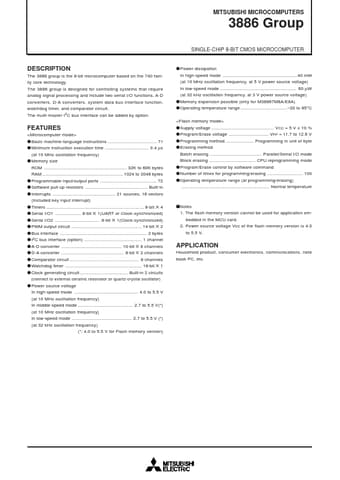

M38867M8A-XXXHP Datasheet Preview — Preview of M38867M8A-XXXHP PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: M38867M8A-XXXHP
Manufacturer: Mitsubishi
File Size: 1.51 MB
Datasheet: M38867M8A-XXXHP-Mitsubishi.pdf
Description: 8-BIT CMOS MICROCOMPUTER

M38867M8A-XXXHP Product details

Description

The 3886 group is the 8-bit microcomputer based on the 740 family core technology..

Features

qBasic machine-language instructions 71 qMinimum instruction execution time 0.4 µs (at 10 MHz oscillation frequency) qMemory size ROM 32K to 60K bytes RAM 1024 to 2048 bytes qProgrammable input/output ports 72 qSoftware pull-up resistors Built-in qInterrupts 21 sources, 16 vectors (Included key input interrupt) qTimers 8-bit ! 4 qSerial I/O1 8-bit ! 1(UART or Clock-synchronized) qSerial I/O2 8-bit ! 1(Clock-synchronized) qPWM output circuit 14-bit ! 2 qBus interfa.
