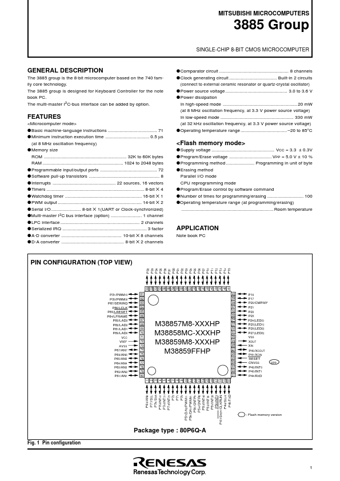

M38857M8-XXXHP Datasheet Preview — Preview of M38857M8-XXXHP PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: M38857M8-XXXHP
Manufacturer: Mitsubishi
File Size: 1.32 MB
Datasheet: M38857M8-XXXHP-Mitsubishi.pdf
Description: 8-BIT CMOS MICROCOMPUTER

M38857M8-XXXHP Product details

Description

The 3885 group is the 8-bit microcomputer based on the 740 family core technology..

Features

qBasic machine-language instructions 71 qMinimum instruction execution time 0.5 µs (at 8 MHz oscillation frequency) qMemory size ROM 32K to 60K bytes RAM 1024 to 2048 bytes qProgrammable input/output ports 72 qSoftware pull-up transistors 8 qInterrupts 22 sources, 16 vectors qTimers 8-bit ✕ 4 qWatchdog timer 16-bit ✕ 1 qPWM output 14-bit ✕ 2 qSerial I/O 8-bit ✕ 1(UART or Clock-synchronized) qMulti-master I2C bus interface (option) 1 channel qLPC interface 2 chan.
