M51995AP

SWITCHING REGULATOR CONTROL

M51995AP Features

* 500kHz operation to MOS FET

* Output current±2A

* Output rise time 60ns,fall time 40ns

* Modified totempole output method with small through current Compact and light-weight power supply

* Small start-up current90µA typ.

* Big difference between "start-up voltage"

M51995AP General Description

M51995A is the primary switching regulator controller which is especially designed to get the regulated DC voltage from AC power supply. This IC can directly drive the MOS-FET with fast rise and fast fall output pulse. Type M51995A has the functions of not only high frequency OSC and fast output dri.

M51995AP Datasheet (431.10 KB)

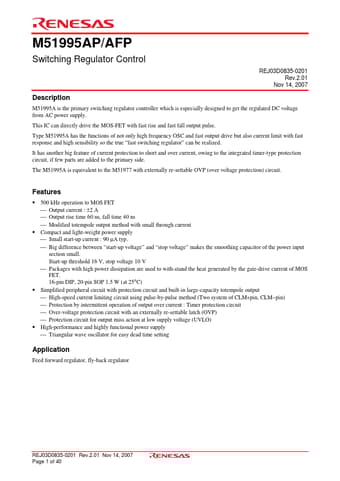

Preview of M51995AP PDF

Datasheet Details

Part number:

M51995AP

Manufacturer:

Mitsubishi

File Size:

431.10 KB

Description:

Switching regulator control.
