M51995AFP

SWITCHING REGULATOR CONTROL

M51995AFP Features

* 500 kHz operation to MOS FET  Output current : ±2 A  Output rise time 60 ns, fall time 40 ns  Modified totempole output method with small through current

* Compact and ligh

M51995AFP General Description

M51995A is the primary switching regulator controller which is especially designed to get the regulated DC voltage from AC power supply. This IC can directly drive the MOS-FET with fast rise and fast fall output pulse. Type M51995A has the functions of not only high frequency OSC and fast output dri.

M51995AFP Datasheet (431.10 KB)

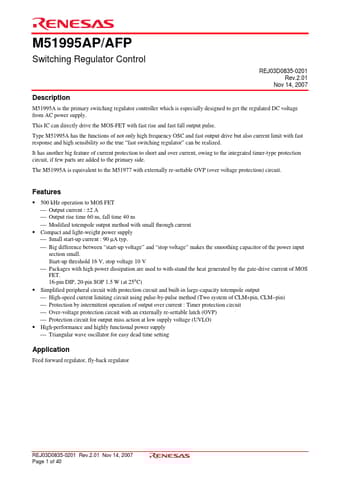

Preview of M51995AFP PDF

Datasheet Details

Part number:

M51995AFP

Manufacturer:

Renesas ↗

File Size:

431.10 KB

Description:

Switching regulator control.
