M51996FP Datasheet - Mitsubishi

SWITCHING REGULATOR CONTROL

M51996FP Features

* 500kHz operation to MOS FET Output current±1A Output rise time 60ns,fall time 40ns Modified totempole output method with small through current Compact and light-weight power supply

* Small start-up current100µA typ.

* Big difference between "start-up voltage" and "stop voltage" makes t

M51996FP General Description

M51996A is the primary switching regulator controller which is especially designed to get the regulated DC voltage from AC power supply. This IC can directly drive the MOS-FET with fast rise and fast fall output pulse and with a large-drive totempole output. Type M51996A has the functions of not onl.

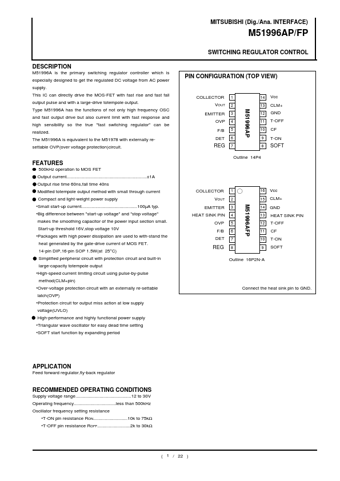

M51996FP Datasheet (366.12 KB)

M51996FP Datasheet Preview — Preview of M51996FP PDF

Datasheet Details

Part number:

M51996FP

Manufacturer:

Mitsubishi

File Size:

366.12 KB

Description:

Switching regulator control.
