M52722SP

3-CHANNEL VIDEO PREAMPLIFIER PROVIDED WITH OSD MIX AND RETRACE LINE BLK FOR HIGH-RESOLUTION

M52722SP Features

* VCC1 (G) 7

* M52722SP

* Frequency band : RGB180MHz (at 3V P-P ) OSD50MHz Input: RGB0.7V P-P (Typ.) OSDmore than 3VP-P (positive polarity) BLK (for OSD)more than 3VP-P (positive polarity) Retrace line BLKmore than 3V P-P (positive polarity) Output: RGB4.0V P-P (max.) O

M52722SP General Description

M52722SP is a video amplifier provided with OSD mixing function, and a semiconductor IC having three channels of a built-in wideband 180MHz amplifier. Each channel has the functions of OSD blanking, OSD mixing, retrace line blanking, wideband amplifier, main and sub contrast control, and main brightnes.

M52722SP Datasheet (125.72 KB)

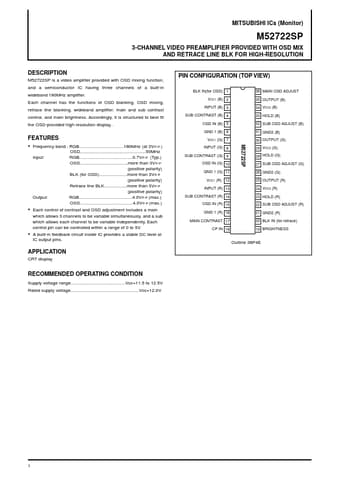

Preview of M52722SP PDF

Datasheet Details

Part number:

M52722SP

Manufacturer:

Mitsubishi

File Size:

125.72 KB

Description:

3-channel video preamplifier provided with osd mix and retrace line blk for high-resolution.
