M52723ASP Datasheet - Mitsubishi

M52723ASP - DYNAMIC FOCUS

The M52723ASP is semiconductor integrated circuit for Multi-Sync display monitors.

It generates horizontal and vertical parabola waves, and it can revise focus of CRT monitors.

V-GND V-SAW INPUT VREF INPUT 1 2 3 4 5 6 7 8 9 20 V-VCC 19 VHS INPUT 18 H-GND 17 H-PULSE INPUT 16 H-DELAY CAPACITOR 15 VPH

M52723ASP Features

* V-PARA OUTPUT VGV INPUT VGH INPUT H-PARA OUTPUT H-SAW RETRACE H-SAW TRACE M52723ASP

* It can control phase of horizontal wave. It contains the horizontal saw wave generator and Auto Gain Control circuit, so that it is able to keep the amplitude constant if frequency c

M52723ASP_MitsubishiElectricSemiconductor.pdf

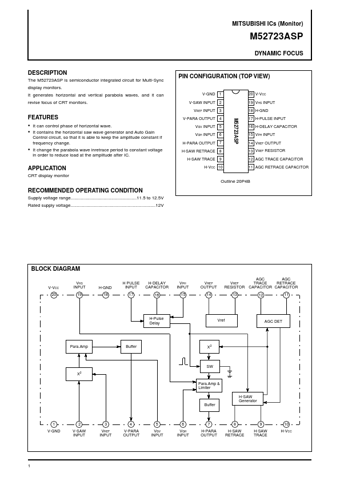

Preview of M52723ASP PDF
M52723ASP Datasheet Preview Page 2 M52723ASP Datasheet Preview Page 3

Datasheet Details

Part number:

M52723ASP

Manufacturer:

Mitsubishi

File Size:

101.37 KB

Description:

Dynamic focus.
