M52732SP

3-CHANNEL VIDEO AMPLIFICATION

M52732SP Features

* INPUT (G) SUB CONTRAST CONTROL (G) GND (G) VCC (R) M52732SP

* It realize low power dissipation so that 3-channels are built in. (VCC=12V, ICC=63mA) Input0.7V P-P (typ.) Output4.5V P-P (max.) Frequency band75MHz (at 3V P-P) To adjust contrast, two types of controls are

M52732SP General Description

The M52732SP is a semiconductor integrated circuit that has 3channels of built-in amplifiers in the broad-band video amplifier having a 75MHz band. Every channel is provided with a broad-band amplifier, contrast control (main and sub), and brightness control. It accordingly has an optimal configuration .

M52732SP Datasheet (78.67 KB)

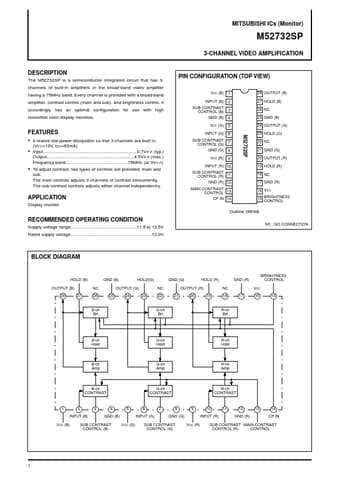

Preview of M52732SP PDF

Datasheet Details

Part number:

M52732SP

Manufacturer:

Mitsubishi

File Size:

78.67 KB

Description:

3-channel video amplification.
