M52739FP

IIC BUS controled 3channel video pre-amplifier

M52739FP Features

* 1.Frequency : RGB 180MHz(at -3dB) Band Width OSD 80MHz 2.Input RGB Input D range:Max1VP-P positive 2 input routes is changed by IIC BUS RGB OSD 3.5VP-P 5.0VP-P(positive) : OSD BLK 3.5VP-P 5.0VP-P(positive) RGB 2.2VP-P (Max) OSD 2.0VP-P (Max) : Output dynamic range 0.5 It can drive 14pF : R GND2 G V

M52739FP General Description

M52739FP is integrated Circuit for LCD Display Monitor.It is controlled IIC BUS and Band Wide is 180MHz. It includes OSD Blanking ,OSD Mixing,Wide Band Amplifier,Main/Sub Contrast Main/Sub Brightness ,and 2 Input routes. Vcc Voltage is 5V and Flat package is used. then it is the suitable to LCD moni.

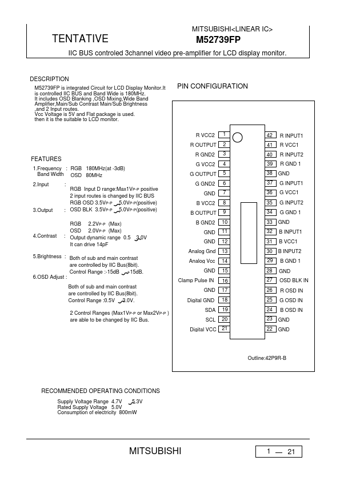

M52739FP Datasheet (202.81 KB)
