M52738P

3-CHANNEL VIDEO PREAMPLIFIER

M52738P Features

* INPUT (R) VCC1 GND INPUT (G) VCC1

* Frequency Band Width : RGB130MHz (at -3dB) OSD80MHz Input :RGB0.7V P-P (typ.) OSD1.6VP-P minimum (positive) OSD BLK1.6VP-P minimum (positive) Retrace BLK1.2VP-P maximum (negative) Output :RGB4V P-P (min.) OSD4VP-P (min.) Contrast and brightne

M52738P General Description

The M52738P is semiconductor integrated circuit for CRT display monitor. It includes OSD blanking function, OSD mixing, Wide-band amplifier, Main and sub contrast controls, Brightness control function. OSD IN (R) OSD IN (G) OSD IN (B) OSD BLK IN 1 2 3 4 5 6 7 8 9 28 SUB CONTRAST (R) 27 SUB CONTRAST (.

M52738P Datasheet (24.02 KB)

Preview of M52738P PDF

Datasheet Details

Part number:

M52738P

Manufacturer:

Mitsubishi

File Size:

24.02 KB

Description:

3-channel video preamplifier.
MITSUBISHI ICs (Monitor) PRELIMINARY Notice:This is not a final specification. Some parametric limits are subject to change. M52738P 3-CHANNEL VIDE.

📁 Related Datasheet

M52732SP - 3-CHANNEL VIDEO AMPLIFICATION (Mitsubishi)
MITSUBISHI ICs (Monitor) M52732SP 3-CHANNEL VIDEO AMPLIFICATION DESCRIPTION The M52732SP is a semiconductor integrated circuit that has 3channels of .

M52733SP - 3-CHANNEL VIDEO AMPLIFICATION (Mitsubishi)
MITSUBISHI ICs (Monitor) M52733SP 3-CHANNEL VIDEO AMPLIFICATION WITH OSD BLANKING DESCRIPTION The M52733SP is a semiconductor integrated circuit ampl.

M52734SP - 3-CHANNEL VIDEO AMPLIFICATION (Mitsubishi)
MITSUBISHI ICs (Monitor) M52734SP 3-CHANNEL VIDEO AMPLIFICATION WITH OSD BLANKING DESCRIPTION The M52734SP is a semiconductor integrated circuit ampl.

M52737SP - 3-CHANNEL VIDEO PREAMPLIFIER (Mitsubishi)
MITSUBISHI ICs (Monitor) M52737SP 3-CHANNEL VIDEO PREAMPLIFIER WITH OSD MIXING, RETRACE BLANKING DESCRIPTION The M52737SP is a semiconductor integrat.

M52739FP - IIC BUS controled 3channel video pre-amplifier (Mitsubishi)
MITSUBISHI TENTATIVE M52739FP IIC BUS controled 3channel video pre-amplifier for LCD display monitor. DESCRIPTION M52739FP is integrate.

M52707SP - M52707SP (ETC)
.DataSheet.co.kr Datasheet pdf - http://..net/ .

M5270L - Low Saturation Output Type Current Driver (Mitsubishi Electric)
.

M52721SP - WIDEBAND VIDEO PREAMPLIFIER WITH OSD MIX (Mitsubishi)
MITSUBISHI ICs (Monitor) M52721SP WIDEBAND VIDEO PREAMPLIFIER WITH OSD MIX DESCRIPTION The M52721SP is a wideband video preamplifier with 200MHz band..

TAGS

M52738P 3-CHANNEL VIDEO PREAMPLIFIER Mitsubishi

Image Gallery

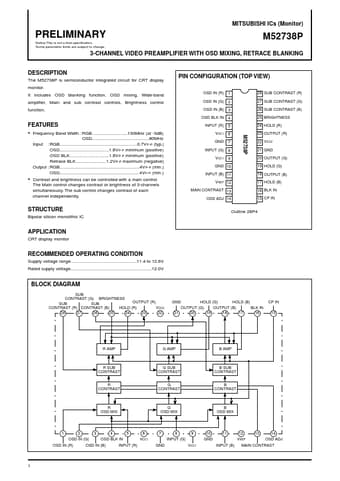

M52738P Datasheet Preview Page 2 M52738P Datasheet Preview Page 3
