M52734SP - 3-CHANNEL VIDEO AMPLIFICATION

Product Overview

Mitsubishi

📥 Download Datasheet

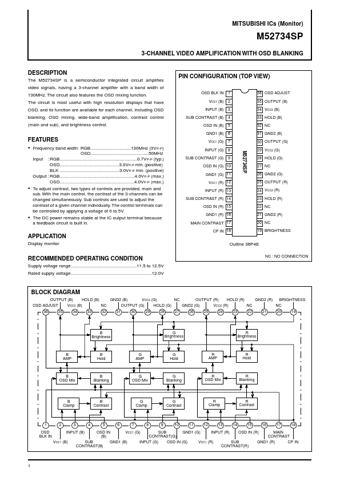

M52734SP 3-CHANNEL VIDEO AMPLIFICATION by Mitsubishi - Datasheet Preview — Datasheet preview – M52734SP

Datasheet Details

Part number	M52734SP
Manufacturer	Mitsubishi
File Size	100.14 KB
Description	3-CHANNEL VIDEO AMPLIFICATION
Datasheet	M52734SP Datasheet
Additional preview pages of the M52734SP datasheet.

Product details

Description

The M52734SP is a semiconductor integrated circuit ampliﬁes video signals, having a 3-channel ampliﬁer with a band width of 130MHz.

Features

the OSD mixing function. The circuit is most useful with high resolution displays that have OSD, and its function are available for each channel, including OSD blanking, OSD mixing, wide-band ampliﬁcation, contrast control (main and sub), and brightness control. OSD BLK IN VCC1 (B) INPUT (B) SUB.
