M52770SP - NTSC/PAL TV SIGNAL PROCESSOR

Product Overview

Mitsubishi

📥 Download Datasheet

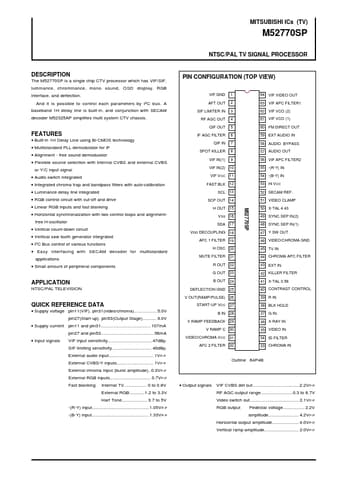

M52770SP NTSC/PAL TV SIGNAL PROCESSOR by Mitsubishi - Datasheet Preview — Datasheet preview – M52770SP

Datasheet Details

Part number	M52770SP
Manufacturer	Mitsubishi
File Size	77.33 KB
Description	NTSC/PAL TV SIGNAL PROCESSOR
Datasheet	M52770SP Datasheet
Additional preview pages of the M52770SP datasheet.

Product details

Description

The M52770SP is a single chip CTV processor which has VIF/SIF, luminance, chrominance, mono sound, OSD display, RGB interface, and deflection.

Features

Built-in 1H Delay Line using Bi-CMOS technology.
Multistandard PLL demodulator for IF.
Alignment - free sound demodulator.
Flexible source selection with internal CVBS and external CVBS or Y/C input signal.
Audio switch integrated.
Integrated chroma trap and bandpass filters with auto-calibration.
Luminance delay line integrated.
RGB control circuit with cut-off and drive.
Linear RGB inputs and fast blanking.
