M52771SP

NTSC/PAL TV SIGNAL PROCESSOR

M52771SP Features

* Built-in 1H Delay Line using Bi-CMOS technology

* Multistandard PLL demodulator for IF

* Alignment - free sound demodulator

* Flexible source selection with internal CVBS and external CVBS or Y/C input signal

* Audio switch integrated

* Integrated ch

M52771SP General Description

The M52771SP is a single chip CTV processor which has VIF/SIF, luminance, chrominance, mono sound, OSD display, RGB interface, and deflection. And it is possible to control each parameters by I2C bus. A baseband 1H delay line is built-in, and conjunction with SECAM decoder M52325AP simplifies multi .

M52771SP Datasheet (91.46 KB)

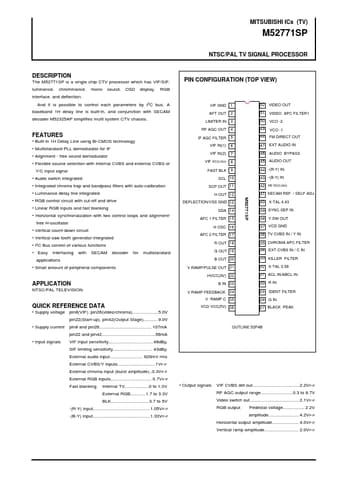

Preview of M52771SP PDF

Datasheet Details

Part number:

M52771SP

Manufacturer:

Mitsubishi

File Size:

91.46 KB

Description:

Ntsc/pal tv signal processor.
