M52775FP Datasheet - Mitsubishi

VIF/ SIF/ VIDEO/ CHROMA/ DEFLECTION

M52775FP Features

* AFT coil-less FM det coil-less Dynamic AGC AV switch (TV/EXT video) Y/C switch Built-in black stretch circuit Delay line aperture control Luminance peak limiter Two window vertic

M52775FP General Description

The M52775FP is desinged to provide a solution to NTSC color television system. It is an I C bus controlled NTSC 1 chip. It consists of various processing blocks such as video IF, sound IF, luminance, chrominance, mono-sound, OSD display, interface, H and V deﬂection. At each block, I2C control is p.

M52775FP Datasheet (262.06 KB)

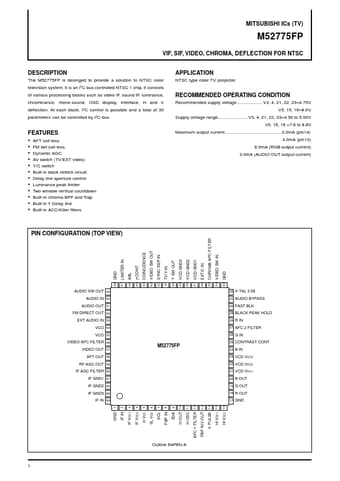

M52775FP Datasheet Preview — Preview of M52775FP PDF

Datasheet Details

Part number:

M52775FP

Manufacturer:

Mitsubishi

File Size:

262.06 KB

Description:

Vif/ sif/ video/ chroma/ deflection.
