M57916L Datasheet, Hybrid-ic, Mitsubishi

M57916L Features

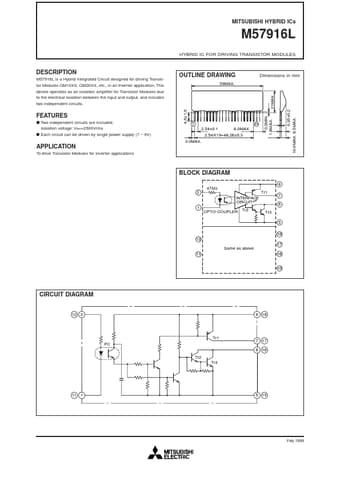

  • Hybrid-ic 0.35±0.2 10.0MAX. 8.5MAX. Feb.1999 4.5±1.5 MITSUBISHI HYBRID ICs M57916L HYBRID IC FOR DRIVING TRANSISTOR MODULES ABSOLUTE MAXIMUM RATINGS (Ta=
      –20 ~ +70°C, unless o

PDF File Details

Part number:

M57916L

Manufacturer:

Mitsubishi

File Size:

44.11kb

Download:

📄 Datasheet

Description:

Hybrid-ic. M57916L is a Hybrid Integrated Circuit designed for driving Transistor Modules QM10XX, QM20XX, etc., in an Inverter application. This

Datasheet Preview: M57916L 📥 Download PDF (44.11kb)
Page 2 of M57916L Page 3 of M57916L

M57916L Application

  • Applications BLOCK DIAGRAM 2 470Ω INTERFACE CIRCUIT 1 OPTO-COUPLER Tr2 Tr3 5 18 12 Same as above 11 17 16 15 8 Tr1 7 6 CIRCUIT DIAGRAM 12 2 8 18
