M57925L Datasheet, Hybrid-ic, Mitsubishi

M57925L Features

  • Hybrid-ic a small outline of 10-pin SIP. OUTLINE DRAWING 33MAX. Dimensions in mm q Electrical isolation between input and output with integrated optocoupler. Viso=2500Vrms Propagation delay ti

PDF File Details

Part number:

M57925L

Manufacturer:

Mitsubishi

File Size:

50.03kb

Download:

📄 Datasheet

Description:

Hybrid-ic. M57925L is a Hybrid Integrated Circuit designed for driving Transistor Modules QM30DY, QM50DY, etc., in an Inverter application. This

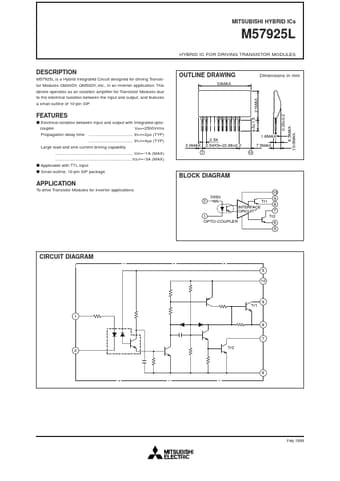

Datasheet Preview: M57925L 📥 Download PDF (50.03kb)
Page 2 of M57925L Page 3 of M57925L

M57925L Application

  • Applications 2 330Ω INTERFACE CIRCUIT 1 OPTO-COUPLER Tr1 CIRCUIT DIAGRAM 5 10 Tr1 1 9 8 7 2 Tr2 6 0.35±0.2 8.5MAX. 10.0MAX. Feb.1999 4.5±1.5
