M57917L Datasheet, Hybrid-ic, Mitsubishi

M57917L Features

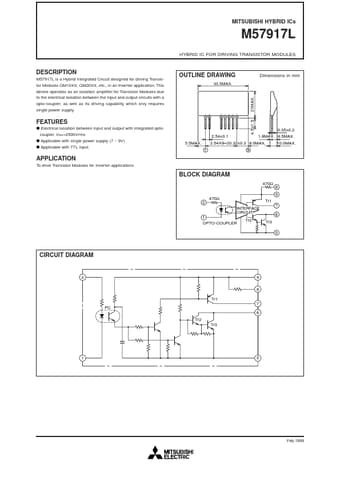

• Hybrid-ic 2 9 8 Tr1 7 PC 6 Tr2 Tr3 1 5 Feb.1999 MITSUBISHI HYBRID ICs M57917L HYBRID IC FOR DRIVING TRANSISTOR MODULES ABSOLUTE MAXIMUM RATINGS (Ta=
    –20 ~ +70°C, unless oth

PDF File Details

Part number:

M57917L

Manufacturer:

Mitsubishi

File Size:

37.59kb

Download:

📄 Datasheet

Description:

Hybrid-ic. M57917L is a Hybrid Integrated Circuit designed for driving Transistor Modules QM10XX, QM20XX, etc., in an Inverter application. This

M57917L Application

• Applications BLOCK DIAGRAM 470Ω 470Ω INTERFACE CIRCUIT 1 OPTO-COUPLER Tr2 Tr3 5 8 9 Tr1 7 6 2 CIRCUIT DIAGRAM 4.5±1.5 FEATURES 2 9 8 Tr1 7 PC
